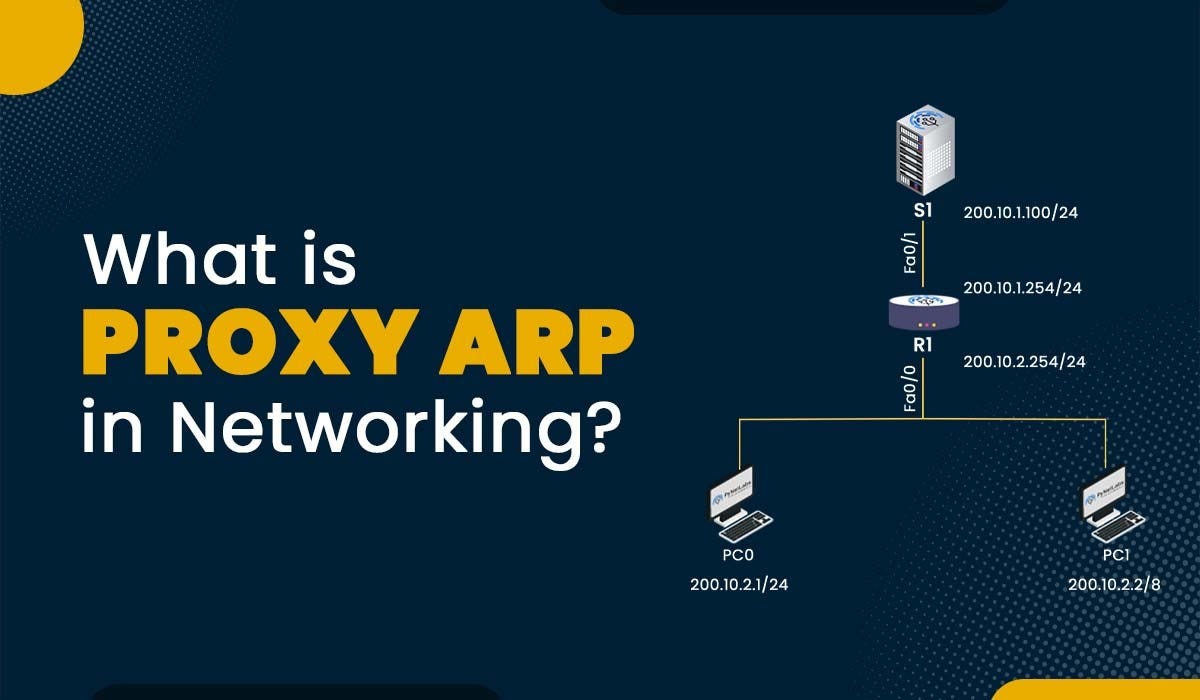

Proxy ARP (Address Resolution Protocol) is a networking technique used to enable communication between different network segments by allowing one network device (like a router) to respond to ARP requests on behalf of another device. Proxy ARP acts as a bridge between different subnetworks without requiring special routing or configuration changes on the devices themselves. This mechanism is useful in environments where the network structure requires devices on one subnet to communicate with devices on another subnet without the direct use of a router or gateway, effectively making two separate subnets appear as one large, shared subnet.
To explain how Proxy ARP works, let’s dive into some key concepts and explore scenarios where it’s used, its advantages and disadvantages, and its applications.
1. Address Resolution Protocol (ARP) Basics
ARP is a protocol used within local area networks (LANs) to map IP addresses to MAC addresses, allowing devices on the same subnet to communicate. When a device wants to communicate with another device on the same network, it sends an ARP request to resolve the destination IP address to a physical (MAC) address. The device with the matching IP address then responds with its MAC address, enabling packet delivery at the data link layer (Layer 2 of the OSI model).
2. What Is Proxy ARP?
Proxy ARP occurs when a network device, typically a router, responds to ARP requests intended for another device. Instead of the target device sending its own MAC address as a response, the router (or other proxy-enabled device) sends its MAC address on behalf of the target. This enables devices on different subnets to communicate as if they were on the same physical network. Proxy ARP allows a router to make the devices believe they are on a shared subnet even though they are, in reality, separated by a router or a network boundary.
3. How Proxy ARP Works
Here’s how Proxy ARP works step-by-step:
Device Initiates ARP Request: When a device (Device A) wants to communicate with another device (Device B) on what it believes is the same subnet, it broadcasts an ARP request for Device B’s IP address.
Router Receives the ARP Request: If Device B is on a different subnet, a router (Router R) configured with Proxy ARP on Device A’s subnet will receive the ARP request.
Router Responds to the ARP Request: Instead of Device B responding to the ARP request (since it is on a different subnet), Router R responds with its own MAC address, acting as a “proxy” for Device B.
Device A Sends Traffic to Router: Now that Device A has a MAC address to communicate with, it sends the traffic intended for Device B to Router R.
Router Forwards the Traffic to Device B: Router R then forwards the packet to Device B on its actual subnet.
By intercepting ARP requests and responding on behalf of other devices, the router essentially enables seamless communication between different subnets.
4. When and Why Proxy ARP is Useful
Proxy ARP is useful in various scenarios where subnetting, network segmentation, or routing limitations could otherwise prevent devices from communicating. Here are a few examples of when Proxy ARP might be helpful:
Legacy Network Systems: In older network architectures, routers might not have advanced routing protocols or subnetting configurations, making Proxy ARP a simple solution for connectivity.
Virtual Private Networks (VPNs): In VPN configurations, Proxy ARP can be used to extend the address space and enable remote clients to appear as if they are on the same LAN.
Connecting Isolated Networks: Proxy ARP helps devices on isolated or separated networks communicate without reconfiguring the devices to route traffic to a different subnet.
Bridging Between VLANs: Proxy ARP can bridge communication between VLANs (Virtual Local Area Networks) without complex inter-VLAN routing configurations.
5. Advantages of Proxy ARP
Proxy ARP provides several benefits in certain network configurations:
Simplifies Network Configuration: Proxy ARP allows devices on different subnets to communicate without complex routing configurations or static routes.
Seamless Device Communication: Proxy ARP enables direct communication across subnets, appearing as if all devices are on a single subnet.
Legacy Support: For older devices or networks with limited capabilities, Proxy ARP can help maintain connectivity without extensive reconfiguration.
6. Disadvantages and Limitations of Proxy ARP
Despite its benefits, Proxy ARP has some drawbacks that make it less desirable in modern networks:
Scalability Issues: Proxy ARP does not scale well in large networks. Each ARP request requires the proxy device to respond, which can lead to excessive ARP traffic and processing overhead.
Security Risks: Proxy ARP can expose networks to ARP spoofing or ARP poisoning attacks. Malicious actors could impersonate other devices, causing packets to be misdirected.
Inefficient Routing: In larger networks, using Proxy ARP can lead to suboptimal routing paths and potential bottlenecks, as it doesn’t provide the same level of control as traditional routing protocols.
Increased Network Traffic: Proxy ARP increases ARP traffic since requests are being intercepted and responded to by the proxy device, which can add overhead in dense networks.
Limited Use in Modern Networks: Modern networking technologies, such as VLANs, advanced routers, and routing protocols, have reduced the need for Proxy ARP, as these technologies can handle inter-subnet communication more efficiently.
7. Real-World Applications of Proxy ARP
Although Proxy ARP is less commonly used in modern networks due to its limitations, it still has some real-world applications:
VPNs and Remote Access Networks: Proxy ARP is sometimes used in VPN configurations to provide seamless connectivity to remote users. By enabling Proxy ARP, VPN clients can access devices on the LAN as if they were on the same subnet.
Network Address Translation (NAT) Support: In certain NAT scenarios, Proxy ARP helps direct packets to devices behind NAT, allowing for seamless inter-subnet communication.
Support for Legacy Networks: Proxy ARP is a straightforward solution for legacy networks or networks with limited routing capabilities, allowing communication between separate IP ranges without configuring additional routing.
Virtual Environments: Proxy ARP can be used in virtual environments where virtual machines (VMs) or containers need to communicate with each other across different subnets or VLANs.
8. Configuring Proxy ARP
Configuring Proxy ARP typically involves enabling or disabling it on a router interface. Here’s an example:
In Cisco devices, for instance, Proxy ARP can be enabled or disabled with commands like:
interface <interface-name>
ip proxy-arp
To disable Proxy ARP on a Cisco device:
interface <interface-name>
no ip proxy-arp
Proxy ARP may also be configured on other networking devices by similar commands depending on the router’s or firewall’s OS.
9. Proxy ARP vs. Other ARP Methods
Proxy ARP is distinct from other ARP methods:
Gratuitous ARP: This is an ARP message sent by a device to inform others of its IP and MAC address, often used for IP conflict detection or load balancing.
Inverse ARP: Inverse ARP allows devices to learn IP addresses associated with virtual circuit identifiers in Frame Relay and ATM networks.
Reverse ARP (RARP): RARP is used by devices to request their IP address from a server, often used by diskless workstations at boot time.
10. Security Considerations with Proxy ARP
Given its potential for misuse, Proxy ARP introduces security risks in certain scenarios:
ARP Spoofing/Poisoning Attacks: Proxy ARP can make networks vulnerable to ARP spoofing attacks. Attackers can use ARP messages to impersonate devices and reroute traffic to intercept or modify data.
Unauthorized Device Access: Proxy ARP can expose devices to unauthorized access if network segmentation is bypassed.
To mitigate these security risks, network administrators should implement strong ARP security measures, such as Dynamic ARP Inspection (DAI), ARP filtering, or MAC address filtering. Proxy ARP should also be used cautiously and only in scenarios where no better alternatives exist.
