1. What is Link State Request Packet Packet ?
OSPF Link State Request (LSR) packet is a type of packet used in the OSPF routing protocol. It is sent by an OSPF router to request specific link-state information from its neighboring routers.
The purpose of the LSR packet is to gather information about the network topology and update the OSPF routing tables. When a router needs certain link-state information, such as the state of neighboring routers or details about network links, it sends out an LSR packet.
After two routers exchange DD packets, they send LSR packets to request each other's LSAs for update. These LSR packets contain the summaries of the requested LSAs.
Upon receiving an LSR packet, the neighboring router checks its link-state database for the requested information. If the router has the requested data, it responds with an OSPF Link State Advertisement (LSA) packet. The LSA packet contains the requested link-state information, allowing the requesting router to update its OSPF routing table accordingly.
Overall, the OSPF LSR packet plays a crucial role in the exchange of link-state information between OSPF routers. It enables routers to gather the necessary data about the network topology, facilitating efficient routing decisions and ensuring optimal network performance.

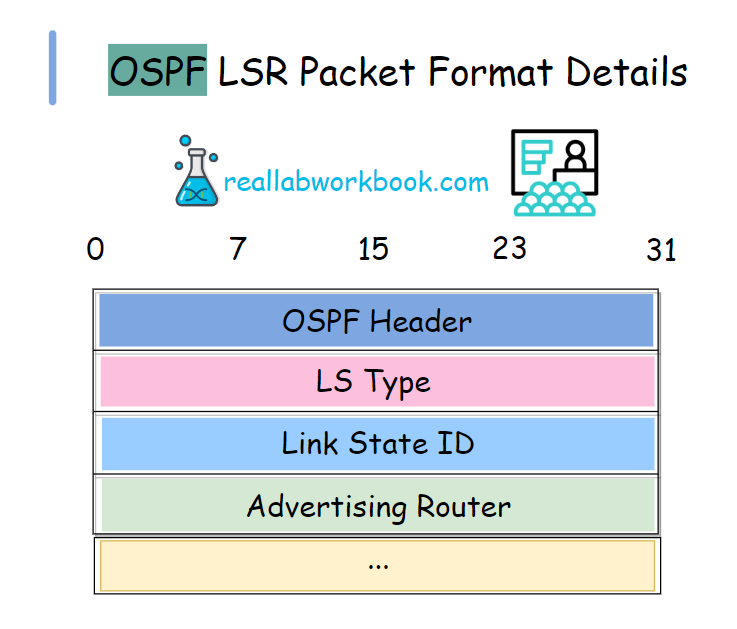

2. OSPF Link State Request Packet Format Details
1. LS type: 32bits, Type of the LSA.
2. Link State ID: 32bits, This field, together with the LS type field, uniquely identifies each LSA in an OSPF area.
3. Advertising Router: 32bits,Router ID of the device that generates the LSA.
