Introduction to Network Load Balancing
Network load balancing is a technique used to distribute network traffic across multiple servers or devices to ensure no single device is overwhelmed with too much traffic. This enhances the performance, reliability, and availability of applications, ensuring continuous operation even during high traffic periods. In network load balancing, several protocols can be employed, such as Hot Standby Router Protocol (HSRP), Virtual Router Redundancy Protocol (VRRP), and Gateway Load Balancing Protocol (GLBP).
Hot Standby Router Protocol (HSRP)
HSRP is a Cisco proprietary redundancy protocol designed to ensure high availability of the default gateway servicing hosts on the same network.
How HSRP Works
HSRP achieves high availability by using a virtual IP address shared among a group of routers. One router is elected as the active router, and another as the standby router. The active router handles all traffic, while the standby router monitors the status of the active router and takes over if the active router fails.
Election Process: The router with the highest priority is elected as the active router. If the priorities are the same, the router with the highest IP address becomes the active router.
Timers: HSRP uses hello and hold timers. The active router sends hello messages to the standby router to indicate its status. If the standby router does not receive hello messages within the hold time, it assumes the active router has failed and takes over.
HSRP States
HSRP routers transition through several states:
Initial: The starting state. Indicates that HSRP is not running.
Learn: The router has not yet seen an active router and does not know the virtual IP address.
Listen: The router knows the virtual IP address but is neither the active nor the standby router.
Speak: The router sends periodic hello messages and participates in the election process.
Standby: The router is a candidate to become the next active router and monitors the hello messages from the active router.
Active: The router currently forwards packets that are sent to the group's virtual MAC address.
Advantages of HSRP
High Availability: Provides continuous network service by reducing the risk of a single point of failure.
Easy Configuration: Simple to set up and manage within a Cisco network environment.
Virtual Router Redundancy Protocol (VRRP)
VRRP is a non-proprietary redundancy protocol, standardized by the IETF, which provides similar functionalities to HSRP but can be used with various vendors.
How VRRP Works
VRRP creates a virtual router with a virtual IP address that is shared among a group of routers. One router is elected as the master router, while the others act as backups.
Election Process: The router with the highest priority becomes the master router. If priorities are equal, the router with the highest IP address is elected.
Timers: The master router sends advertisement messages to the backup routers. If the backup routers do not receive an advertisement within a predefined interval, they assume the master router has failed and initiate a new election.
VRRP States
VRRP routers transition through the following states:
Initialize: The starting state.
Backup: The router is ready to take over if the master fails.
Master: The router is currently forwarding packets.
Advantages of VRRP
Vendor Interoperability: Works across devices from different vendors.
High Availability: Ensures network reliability by providing a backup router.
Gateway Load Balancing Protocol (GLBP)
GLBP is another Cisco proprietary protocol that not only provides redundancy but also load balancing, distributing traffic across multiple routers.
How GLBP Works
GLBP uses a group of routers to share a single virtual IP address. Unlike HSRP and VRRP, GLBP allows multiple routers to be active and share the load.
Election Process: One router is elected as the Active Virtual Gateway (AVG) which assigns virtual MAC addresses to each GLBP member. Each router then acts as an Active Virtual Forwarder (AVF) for its assigned MAC address.
Timers: The AVG sends hello messages to other GLBP routers. If a router does not receive a hello message within a set interval, it assumes the AVG has failed and a new AVG is elected.
GLBP States
GLBP routers transition through several states:
Disabled: The interface is not participating in GLBP.
Initial: The interface is initializing.
Listen: The router is listening for hello messages.
Speak: The router is participating in the election process.
Standby: The router is ready to take over if the AVG fails.
Active: The router is actively forwarding packets.
Advantages of GLBP
Load Balancing: Distributes traffic load among multiple routers.
High Availability: Ensures network reliability through redundancy.

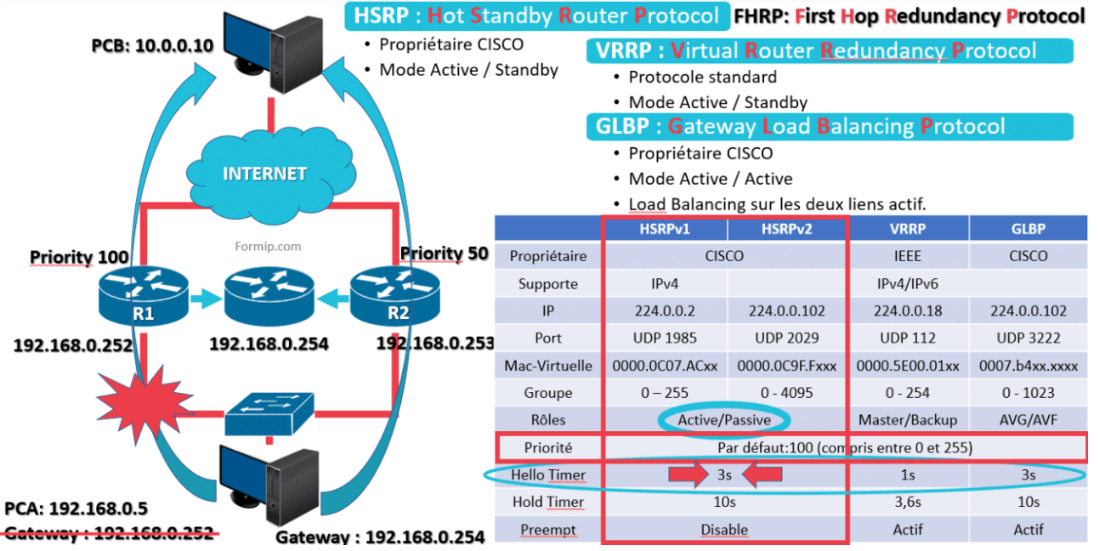

Comparison of HSRP, VRRP, and GLBP
Network load balancing is crucial for ensuring high availability and reliability of network services. HSRP, VRRP, and GLBP each offer unique features to achieve this goal. HSRP and VRRP provide redundancy to prevent single points of failure, with VRRP offering broader vendor interoperability. GLBP goes a step further by incorporating load balancing, making it ideal for networks with high traffic demands. Understanding these protocols and their differences can help network administrators choose the best solution for their specific needs, ensuring a robust and efficient network infrastructure.
