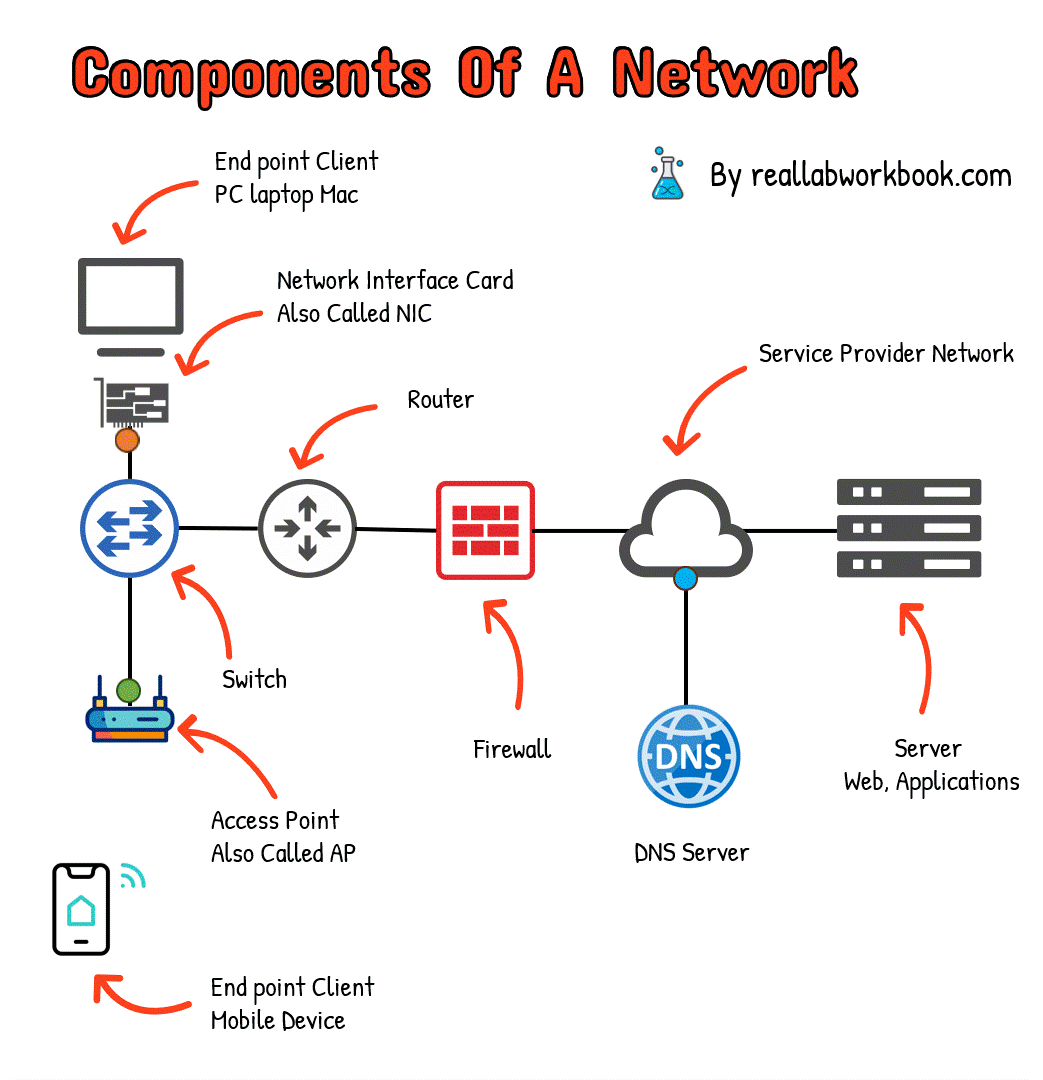

Networks consist of several components that work together to enable communication and data exchange between devices. These components can vary depending on the type of network and its specific requirements, some common components include:
To receive all the full articles and support Real Lab Workbook, consider subscribing:
1. Client Endpoint:
A client endpoint is a device that initiates communication requests or sends data to another device, typically a server, within the network. Examples of client endpoints include computers, smartphones, tablets, and IoT devices like sensors and smart home devices.
2. Network Interface Cards (NICs):
NICs are hardware components installed in devices to connect them to the network. They facilitate the transmission and reception of data over the network medium, such as Ethernet or Wi-Fi.
3. Media:
Network media refers to the physical or wireless medium through which data is transmitted between devices. Common types of network media include copper cables (such as twisted pair and coaxial cables), fiber-optic cables, and wireless signals.
4. Network Protocols:
Network protocols are a set of rules and conventions that govern how data is transmitted, received, and processed within a network. Examples include TCP/IP (Transmission Control Protocol/Internet Protocol), Ethernet, Wi-Fi, and HTTP (Hypertext Transfer Protocol).
5. Switches:
Switches are networking devices that connect multiple devices within a LAN and forward data packets between them. They operate at the data link layer (Layer 2) of the OSI model and use MAC addresses to make forwarding decisions.
6. Routers:
Routers are networking devices that connect multiple networks together and facilitate data routing between them. They operate at the network layer (Layer 3) of the OSI model and use IP addresses to route packets between different networks.
7. Access Points:
Access points (APs) are devices that enable wireless devices to connect to a wired network. They transmit and receive wireless signals and provide a bridge between wired and wireless networks.
8. Firewalls:
Firewalls are security devices that monitor and control incoming and outgoing network traffic based on predefined security rules. They help protect networks from unauthorized access, malware, and other security threats.
9. Servers:
Servers are specialized computers that provide resources or services to other devices within a network. Examples include file servers, web servers, email servers, and database servers.
10. Network Operating System (NOS):
NOS is software that manages and controls network resources, devices, and services. It provides functions such as user authentication, file sharing, network security, and network administration.
These components, along with others, form the infrastructure of a network and work together to ensure efficient and reliable communication between devices.
